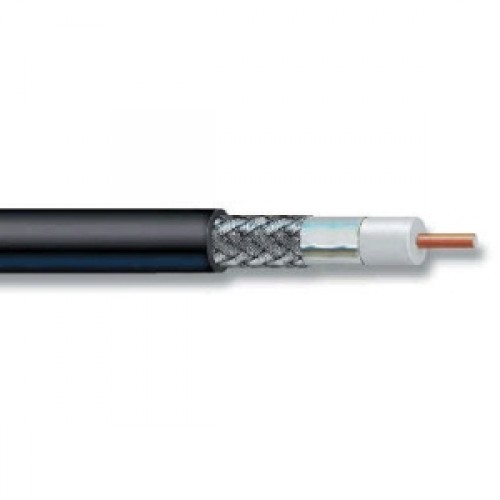

                          LMR 400 Coaxial Cable

                          LMR 400 Coaxial Cable

                          Product Details:

                          X

                          Product Description

                          Coaxial cable is used as a transmission line for radio frequency signals. Its applications include feed lines connecting radio transmitter and receiver with their antennas, computer network Internet connections, and distributing cable television signals. One advantage of coax over other types of radio transmission line is that in an ideal coaxial cable the electromagnetic field carrying the signal exists only in the space between the inner and outer conductor.

                          Constructions

                          Center Conductor

                          Copper clad aluminium Material / 2.74 Diameter(mm)


                          Dielectric

                          Formed PE Material / 7.24 Diameter(mm)


                          Second Shielding

                          Braiding Material / 24/7/.15TC (90%) Diameter(mm)


                          Jacket

                          Standard PE Material /10.29


                          Electrical Specification

                          V. S. W. R.

                          (800,1000MHz,17002200MHz)=1.2


                          Attenuation (dB/100M)

                          30 MHz =2.2 dB/100M) 50 MHz=2.9 150 MHz=5.0 220 MHz=6.1 900 MHz=12.8 1500 MHz=16.8 1800 MHz=18.6 2000 MHz=19.6


                          Impedance - ohms

                          50 ±2
